DESCRIPTION

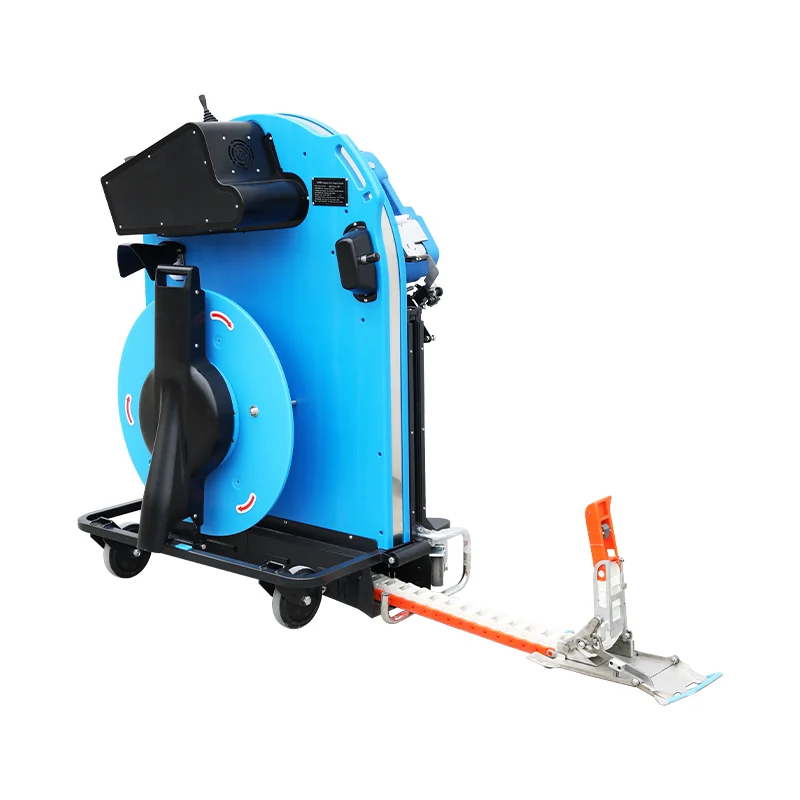

This is a pallet strapping cart. It can automatically wrap the pallet without bend overs, which is safe for operators. It is suitable for PP and PET strap.
Parameter Details
- Model: ZS-PSC1
- Applicable Pallet Load Size Length: ≤ 2000 mm; Height ≤ 2800 mm
- Applicable Pallet Bottom Clearance: H ≥ 85 mm; W ≥ 200 mm
- Applicable Strapping Material: PP/ PET
- Strap Coil Specification Inner Diameter: Φ200 mm or Φ406 mm;
- Coil Width: 150–180 mm
- Strap Size Thickness: 0.6–1.3 mm; Width: 12–19 mm
- Battery Sealed lithium: battery
- Battery Charger Type: External charger (three-stage charging)
- Rated Input Voltage: 110V / 220V AC
- Input Voltage Range: 100–120V AC / 220–240V AC
- Output Current: 10 A
- Maximum Chain Speed: 60 m/min
- Motor Power (Chain Motor): 200 W
- Machine Dimensions (L×W×H): 940 × 650 × 1245 mm
- Machine Weight: 103 kg
Touch screen
Provides a an intuitive interface for setting strapping parameters, monitoring machine status, and making quick operational adjustments.

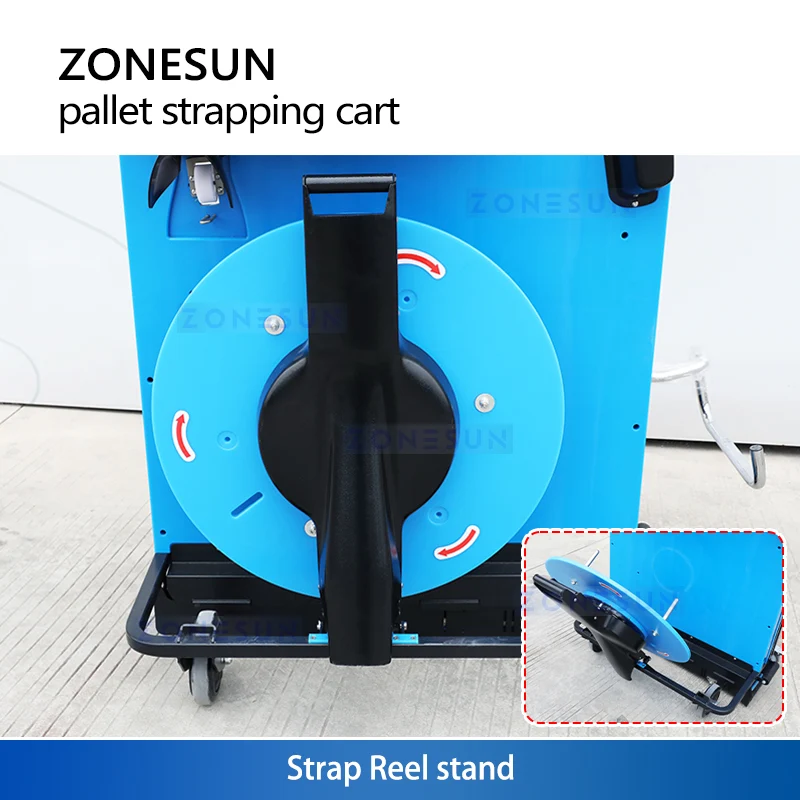

Strap Reel stand
Allows PP and PET strap coils to be switched by adjusting the stand position, providing strong compatibility with different strap types.
Sealing Head
Melts and seals the PP/PET strap to create a strong, reliable joint, with an integrated design that allows adjustable tension and sealing force for optimal performance.
Tool Lift Arm
Assists in lifting and positioning the strapping tool, reducing operator effort and ensuring stable performance during tensioning, sealing, and cutting.
Reversing & Drawing head
Controls strap feeding and reversal while pulling and tensioning the PP/PET strap tightly around the pallet, ensuring smooth alignment and secure bundling.
Strap Cutter
Cuts the PP/PET strap cleanly after sealing or tensioning, ensuring neat strap ends and safe, efficient operation.
