DESCRIPTION
The ZONESUN ZS-SYY1 is a compact manual pad printing machine designed for high-precision printing on curved, flat, and irregular surfaces. Ideal for customizing cosmetic containers, stationery, electronic parts, and branded merchandise, it uses a steel pad to transfer ink from etched plates with clarity and consistency. With a printing speed of up to 2000 pieces per hour and a maximum print area of 100 × 100mm, this energy-efficient unit offers low operating costs and easy mobility.
Technical Specifications
| Model | ZS-SYY1 |
| Operation Mode | Manual |
| Max Printing Diameter | 80*80mm |

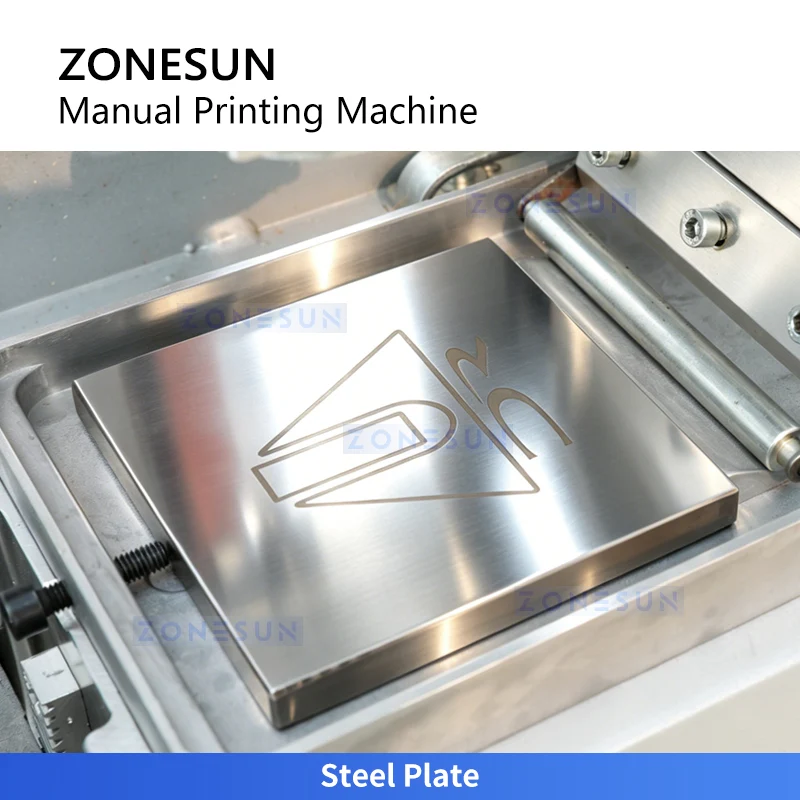

| Steel Plate Size | 100*100mm |
| Max Workpiece length |
150mm |
| Horizontal Stroke | 150mm |
| Pad Stroke |
60mm |
| Printing Accuracy | ±0.02mm |
|
Machine Dimensions (L*W*H) Net Weight |
500*400*220mm 27kg |
✅ Key Features
- High Precision Printing — Silicone pad transfers ink cleanly onto curved, flat, and irregular surfaces
- Fast Production Speed — Up to 2,000 prints per hour for efficient small-batch runs
- Large Print Area — Supports plates up to 100 × 100 mm; extended type up to 150 × 75 mm
- Wide Application — Cosmetic containers, stationery, electronics, promotional merchandise
- Easy to Operate — Manual operation, intuitive design, no special training required
- Compact & Portable — Net weight only 25 kg, suitable for workshops and startups
